Our know-how:

Automation and cleaning technology!

The right cleaning technology for industrial parts is one of the quality-assuring areas in current and future production processes.

To meet these requirements for component cleanliness, we use various processes to optimally and economically treat components from a wide range of industrial sectors. This includes metalworking and processing, automotive, medical technology and aviation. In every single one of these sectors, high-quality and continuous process coordination is required.

Abag Anlagentechnik GmbH has decades of experience in solving the most diverse components cleaning tasks for our customers. We can offer and implement technologically advanced systems for our customers with our economical cleaning systems and their innovative cleaning processes, such as spray cleaning, immersion flood cleaning, ultrasonic cleaning and high-pressure cleaning.

Trust in our experience!

request a project standard cleaning machines

Reinigungsanlage für Lkw Kolben
Rundtakt Reinigungsanlage für Aluminium Gussteile
Over-Size Ultraschallbecken für Großbauteile
Filtration für Ihrer Reinheitanforderung
Reinigung von Kolbenstangen
Automation von Zerspanung und Folgeprozessen

1 2 3 4 5 6 7 8 9

Solution-oriented method

Our machines are adapted to your components and their cleanliness requirements. From chip-free to cleanroom compatible, we design exactly the system you need.

We would be happy to clarify your requirements in a non-binding discussion, after which our work begins with the conceptual design of your cleaning system. Regardless of whether it is a rotary transfer, immersion or continuous cleaning system, we have the know-how in process engineering and the experience in mechanical engineering.

Don’t need a special machine? Then take a look at our portfolio of standard cleaning machines.

Cleaning
Paint stripping
Preservation // Phosphating
De-oiling
Degreasing

learn more

Spray cleaning

During spray cleaning, the component is sprayed from all sides with the cleaning fluid. The impurities are partly dissolved or emulsified by the chemical effect of the cleaning fluid and partially washed away by the high kinetic energy of the spray jet. The intensity is adjusted via the volume flow and pressure. Cavities and bores are specifically cleaned by moving lances. The dirty water is collected, filtered in several stages and reused for cleaning in the circulation system.

Spray cleaning is used in various systems:

One-chamber systems
Multi-chamber systems

learn more

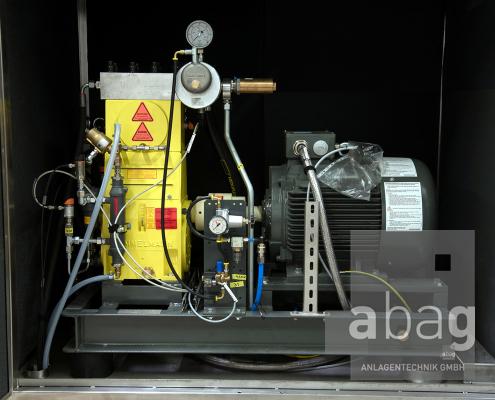

High-pressure cleaning

In contrast to “normal” spray cleaning, the following applies to high-pressure cleaning:

An effect from 20 bar to 200 bar
Removal clamp chip
No deburring
Removal of foundry residues
High-pressure cleaning for stubborn dirt/contamination
Cleaning of thin ducts/bores

learn more

Ultrasound cleaning

As a supplement to immersion bath cleaning, the cleaning bath is supplemented with ultrasound.

An ultrasonic generator generates electrical signals at a specific frequency, and these are transmitted into the liquid as sound waves via rod or surface transducers. The sound pressure is characterised by an interplay of negative and positive pressure. Due to the high intensity, microscopically small cavities form in the negative pressure phases. They collapse (implode) in the subsequent overpressure phase, generating shock waves with considerable energy densities. This creates micro-currents in the liquid that “blast off” impurities on the components to be cleaned and washed off the workpieces.

Ultrasonic cleaning can also be used to loosen stubborn contamination. With appropriate dimensioning, the cleaning performance corresponds to that of high-pressure methods. The sound waves loosen even the smallest particles in corners.

Usable with components from 25g to 25t
Large component cleaning KOKS
Ultrasonic frequency from 20 kHz to 120 kHz
From pre-cleaning to ultra-fine cleaning
For components made of metal, plastic, glass and ceramics

learn more

Roboclean

cleaning with roboter automation – Roboclean

This ultrasonic cleaning system is specially designed for simple robot loading and unloading of dirty parts. Workpieces are automatically moved into the pool after loading and there by a lifting device in the Z axis during cleaningemotional. The components are then lifted out of the pool, dried with an air knife and can then be removed by the robot.
As standard, the cleaning system has an automatically closing loading door, circulation and emptying pump, and an oil separator. The pool is made of 3mm thick stainless steel and is insulated. An optional automatic water metering, steam vapor extraction and a floor pan can be integrated.

learn more
